80m2 Surface Area Hollow Fiber Ultrafiltration Membrane 0.03μM Pore PVDF

Product Categories

Sinomemb Environment Technology (beijing) Co.,

Trust Seal

Verified Supplier

Credit Check

Supplier Assessment

Contact Now

Name: 80m2 Surface Area Hollow Fiber Ultrafiltration Membrane 003μM Pore PVDF
Brand: SINOMEMB
Price: 1 USD

Brand Name : SINOMEMB

Model Number : SNU-HO-2-SP80

Certification : NSF

Place of Origin : China

MOQ : 5

Packaging Details : Standard export packaging

Core Components : MBR

Product name : hollow fiber ultrafiltration membrane, ultrafiltration system, PVC Hollow fiber UF membrane module

Usage : Waste water treatment, , Liquid Filter, remove bacterias, Purification

Module : Out-inside

Nominal Pore Size : 0.03μm

Size : 225×2360mm

Membrane Material : PVDF

Surface Area : 80m2

Contact Now

 Membrane fiber Specification and Parameters

Membrane material	Poly vinylidene fluoride(PVDF with Reinforced lining)
Membrane Pore size	0.034-0.1µm
Membrane fiber (ID/OD)	1.0/2.2mm, 0.8/1.9mm,1.0/2.0mm
Filter method	Negative pressure suction mode
TPM(Max)	50Kpa
Designed Flux	10-40L/㎡·h
PH Range	2-11
Temperature Range	5-40℃
MLSS Range	4000-12000mg/L (min:3000mg/L, max:15000mg/L)

Model		MBR6	MBR10	MBR15	MBR-20	MBR-35
Element size	AbD(mm)	60076040	630100036	630150036	630200036	844219849
	Connection	Ф25	Ф32	Ф32	Ф32	Ф32
Element parameters	Effective membrane area	6m²	10m²	15m²	20m²	35m²
	Pore size	0.03~ 0.1µm
	Material	PVDF( PET lining)
	Water catchment mode	Both ends of the catchment
	Filtration mode	Negative pressure suction
Operating conditions	TMP	0.02~0.05Mpa
	MAX Backwash pressure	0.1Mpa
	Water temperature	10~45℃
	Running PH tolerance range	5~9
	Cleaning PH tolerance range	2~10
	Aeration rate(Nm³)/ projected area	15:1~20:1
Performance	Produced water	Turbidity <0.3NTU SS≈0 SDI<4
	Working life	≥ 5 years under normal usage

Model			JHM-MBR-II15	JHM-MBR-II30
Element size	a*b	1250mm*1300mm		1250mm*2000mm
	Connection		Ф32	Ф32
Element parameters	Efective membrane area		15m²	30m²
	Pore size		0.03~ 0.1µm	0.03~ 0.1µm
	material		PVDF membrane with PET support tube & ABS cartridge
	Method of integration		Both ends of the catchment
	Filtration mode		Negative pressure suction by submersed membrane
Operating conditions	Operation pressure range		0.02~0.05Mpa
	MAX Backwash pressure		0.1Mpa
	Temperature		10~45℃
	Run PH tolerance range		5~9
	Clean PH tolerance range		2~10
	Aeration rate(Nm³)/ projected area		100-150 m/h
Performance	Produced water turbidity		Turbidity <0.3NTU SS≈0 SDI<4
	Working life		≥ 5 years under normal usuage

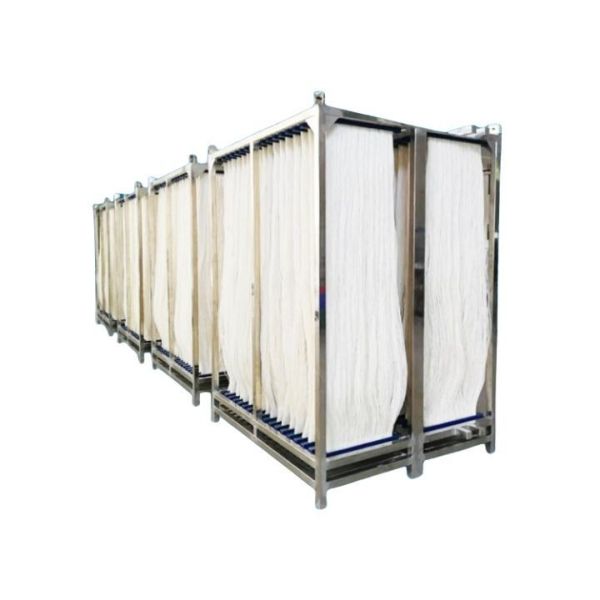

Model	JHM-MBR20-32
Element quanity (piece)	20m²/pc *32pcs
Effective membrane area	640m²
Membrane module bracket dimension	169014202380mm
Dry/Wet weight(inlc. water&sludge adhering)	600kgs/900kgs

Partial OEM model parameters of SINOMEMB ^®UF membrane

UF specifications and models	Membrane material	Operation mode	Membrane element size (mm)	Effective membrane area (㎡)	Nominal filter pore size (μm)
SNU-HO-2-SP80	PVDF	outside-in	Φ225×2360	80	0.03
SNU-HO-2-HMAX40	PVDF	outside-in	Φ250×1365	52	0.03

Note: The element model (membrane performance, appearance size) not mentioned can be customized according to the order quantity.
